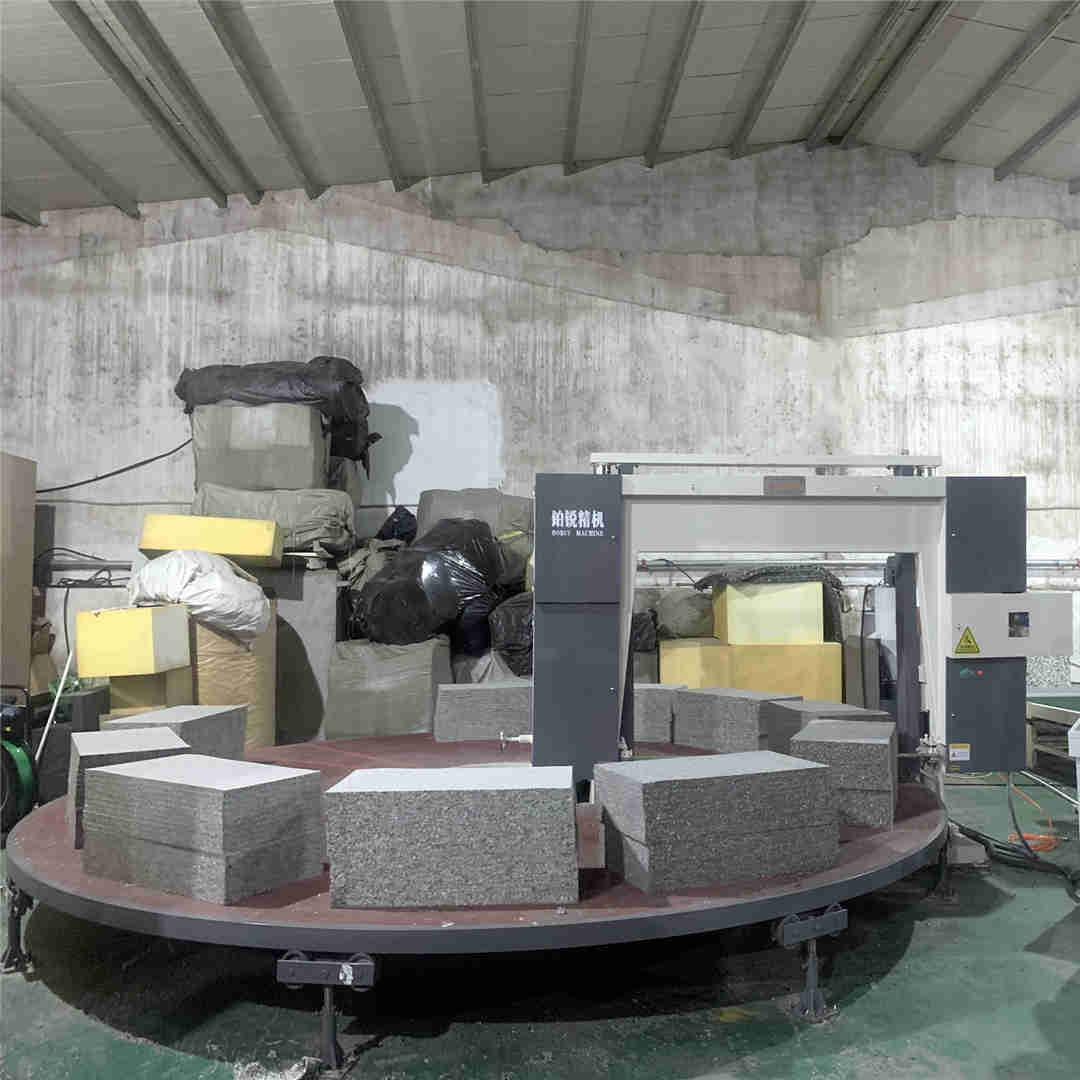

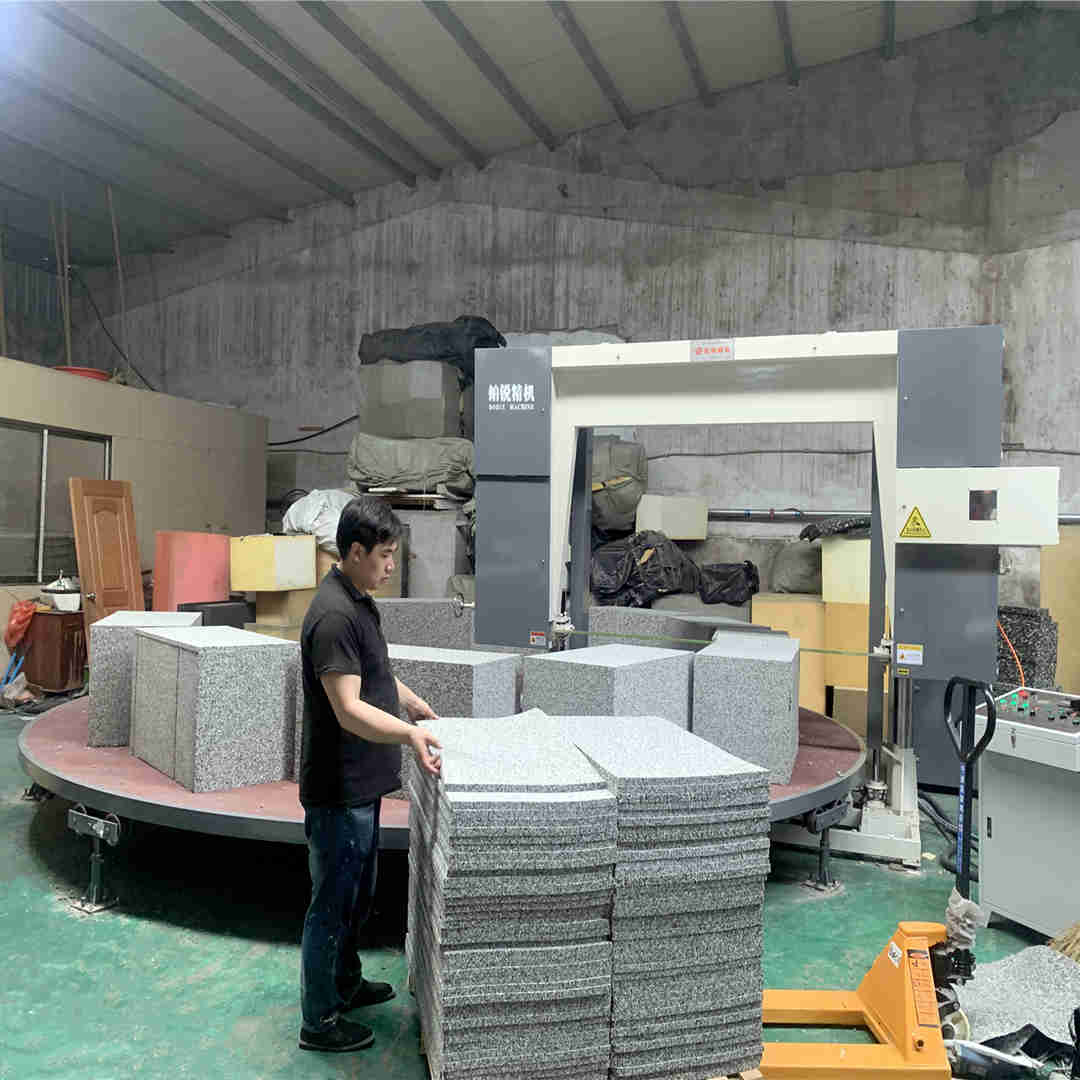

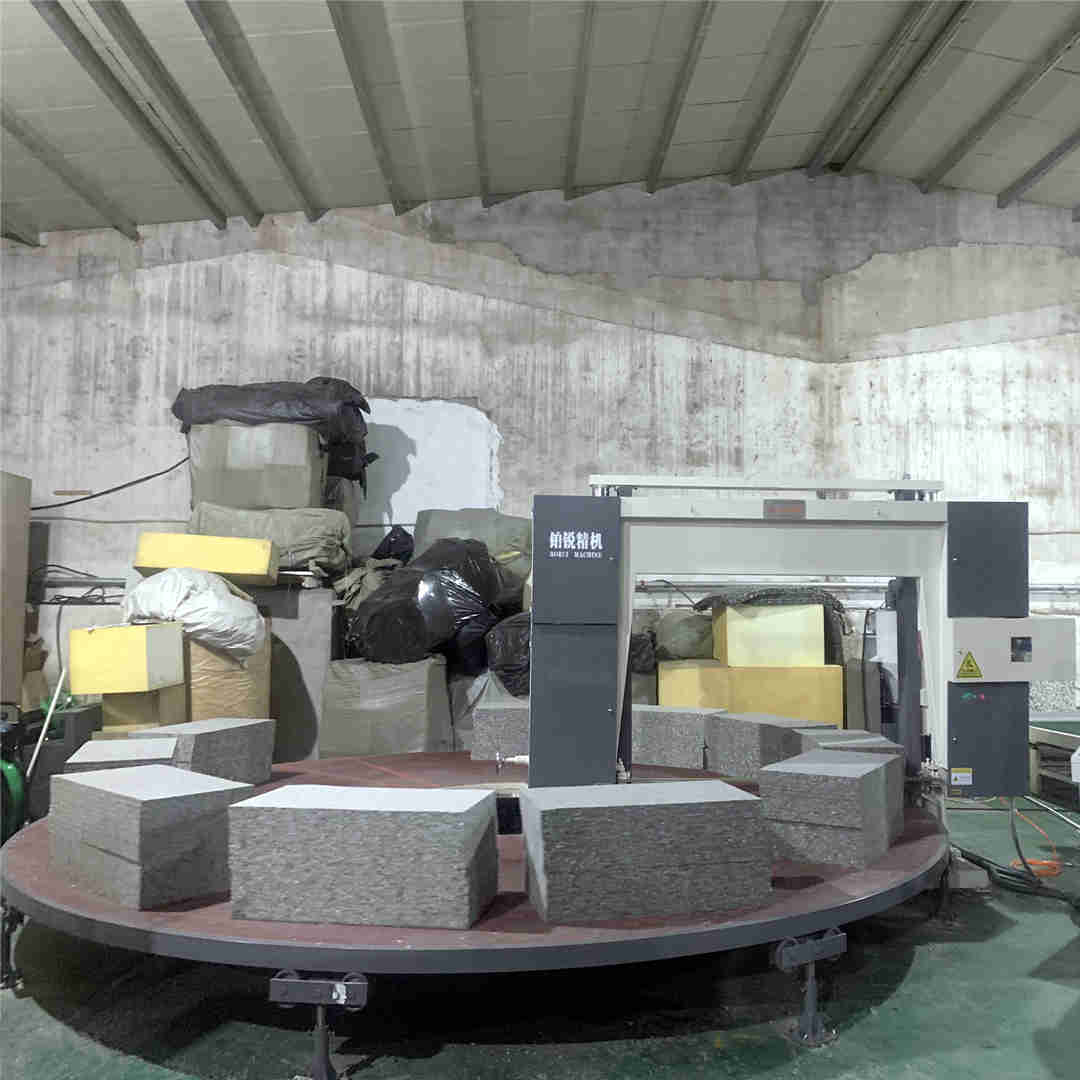

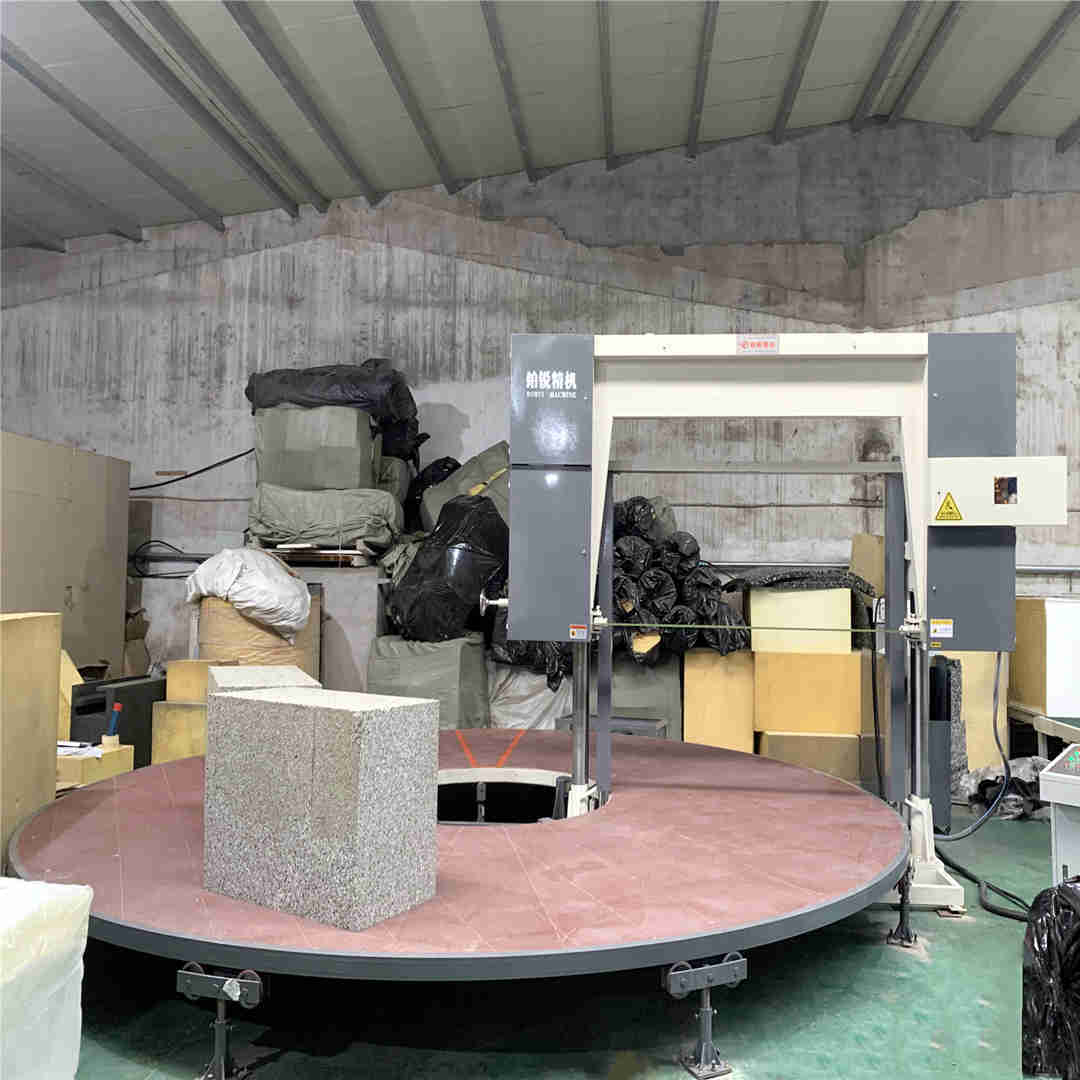

Brjx-yp regenerative sponge disc cutter

設備簡介：

The machine is mainly puts many block foam on the workable cutting slices at the same time, adopt fully automatic digital control, and setting the number as need cutting thickness and by control box. The worktable runs automatically. The turning speed of workable is adjustable, Continuously cutting, the production efficiency is very high ( worktable can choose with the vacuum system).
技術參數：

型號 Model	BRJX-6M	BRJX-7M	BRJX-10M
切割海綿尺寸 cutting foam size	L2000*W1500*H1200mm L2000*W2000*H1200mm	L2000*W2000*H1200mm L3000*W2000*H1200mm	L2000*W2000*H1200mm L3000*W2000*H1200mm
切割海綿厚度cutting foam thickness	2-150mm	2-150mm	2-150mm
工作臺旋轉速度worktable turning speed	0-3.5r/min	0-3.5r/min	0-3.5r/min
工作臺直徑worktable diamete	￠6m	￠7m	￠10m
總功率 total power	8.92KW	8.92KW	8.92KW
機器外形尺寸machine external size	L7000*W6500*H2400mm	L7500*W7000*H2400mm	L11500*W11000* H2400mm
